ES T-3

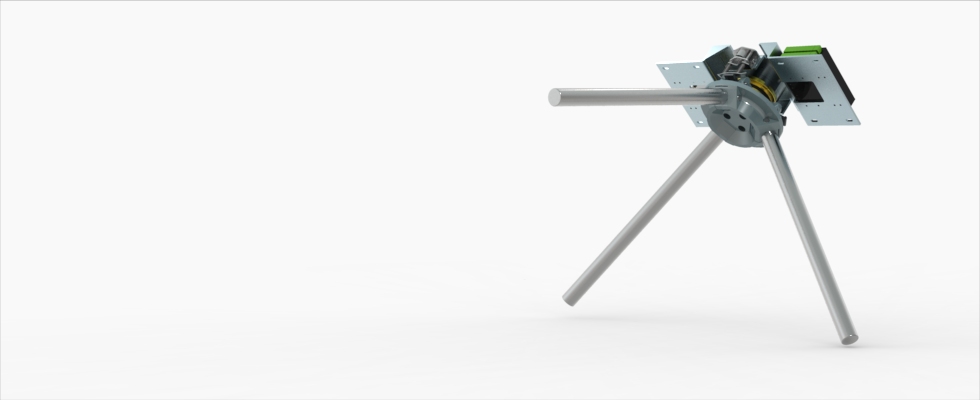

Electromechanical Unit for Tripod Turnstiles



It is the core unit for pedestrian access control equipment used for passage management in publics. It is a high-class mechatronics device with electromagnetic clutch, DC power-assisted drive and anti-panic design.

tripod turnstiles, barrier,access control system,security products
Technical Specifications




Physical dimension(mm) and Weight(kg)

  • Length: 450mm (17.72 inches)
  • Width: 140mm (5.51 inches)
  • Height: 200mm (7.87 inches)
  • Weight: 18kg (39.68 pounds)
  • Packaging: length(630mm),width(410mm),height(250mm)



Main materials

  • Electromechanical Unit Base: 45 steel with Zinc plated
  • Flange: Cast aluminum with Sand Blasted finishing
  • Crossbar: 1.5mm thick SUS304 Grade Brush stainless steel



Electromechanical unit performances

  • Transmission mode: servo-position drive
  • Safe mode: free passage in case of power failure
  • Power-assist drive:DC brushless motor
  • Crossbar control: clutch device with strength over 80kg
  • Passage width: 520--560mm
  • Noise: ≦40db in standby status; ≦52db in working status
  • Passthrough rate: >30 passages/minute
  • Driver life:>5 million times; MCBF> 2 million times; MTTR≤10 minutes



Features

  • Unique DC 24V mechanical bearing locking and multilevel sensor positioning structure provide high security and silent smooth operation
  • The system is equipped with stepless positioning apparatus and the operation is controlled by sensors without mechanical impact.
  • Crossbar orientation: one or both directions(optional); adjustable passthrough rate; optional operation modes
  • Adjustable 5 ranks for running speed
  • Adjustable gates opening angle: 0-10 degrees
  • Mortor starting torque and brake torque are adjustable; Contact force between poles and human body can be controlled in optimal range.
  • Motor combined rotary encoder provides steady operation for tripod turnstiles and 360° pole detection totally prevents user from being hurt.
  • 360° bearing locking prevents deadlock caused by accidents in free passage status.






    • Protection functions: anticollision, antistall, antideadlock, over voltage, over current and power surge.
    • Preventing and warning the illegal operations.
    • Pole dropping down automatically in case of extraordinary situations.
    • Standard external electric interface with photoelectric isolation enhance incorporate all kinds of control equipments thus extremely convenient for system integration.
    • Special ITE is convenient for test. The default factory parameters can be changed by users.
    • Remote pole up and down.



    Electrical and operating requirements

    • Control unit:  JX100 electromechanical unit control panel
    • Operating voltage: DC 24V
    • Starting power: 90W
    • Average power: 25W
    • Max power: 36W
    • Operating temperature: -20 to 70°C（-4 to 158°F）
    • Storage temperature: -40 to 80°C（-40 to 176°F）
    • Relative humidity: 0  to 95%RH



    Communication

    • Standard RS232 port
    • Digital I/O
    • Industrial RS485/CAN BUS (optional)





    Operation interface (user’s choice for expansion )

    • ITE, please refer to its manual



    Installation

    • Power line grounded well
    • Please refer to ES T-3 installation drawing


    Maintenance

    • Once per 500,000 uses or half year


    Secure, practical and exquisitely
    designed Tripod Turnstiles
    tripod turnstiles
    The latest Speed Gates: only 0.4 second
    for gates opening & closing
    speed gates
    The latest Swing Gates: only 0.4 second
    for gates opening & closing
    swing gates

    What is Intelligent Access Control Equipment

    • It is equipment which combines hardware with high-tech mechatronics intelligent control system.Controller, transducer, recognizer etc must be combined into equipment to achieve intelligent access control.
    • There are two kinds of intelligent access control equipment: one is for pedestrian flow; the other, for vehicle flow or material flow.
    • There are two types of equipments for pedestrian flow controlling: equipment with and without barrier.
    • The equipments with barriers include tripod turnstiles, half-height turnstiles, full-height turnstiles etc; the equipments without barrier include swing gates, speed gates etc.
    • The equipments for vehicle flow or material flow are road gates, road blocker etc.

    How to select Equipment

    • Application: for some sites with high value tickets and strict management, equipments with barriers are suitable, while for sites with heavy pedestrian flow, the combination of equipments with barriers and ones without barriers is better; Swing gates and speed gates are helpful to improve image while tripod turnstiles is cost effective.
    • Support system: namely management system which is key for system integration.

    • Hardware: A.Functions: its openness, compatibility, portability, expandability, maintainability, safety etc must be considered. B. Craft: if molding, jointing and surface processing comply with international standard; if product shape is designed to comply with human engineering; if it has protective measures. C. Material: if housing is all-steel; if cables are made of fire-retarding, low smoke and halogen-free materials and are covered by protection materials.

    Why Essence

    • Essence has been involved in development and manufacture of access control equipment for 15 years. Its excellent technology and rich experience provides high-quality products.
    • Essence's products are made of high grade stainless steel and the molding, jointing and surface processing comply with international standard.
    • The edges and corners are circular-arc to protect users from being hurt; product shape is designed to comply with human engineering; the simplified structure provides easy installing and uninstalling; plug and play units make inspection and maintenance easy.
    • Thorough protective measures: Essence's products are static-free, waterproof, high/low temperature resistant, impact resistant. They are tested in many severe environments, such as areas in 38℃ below zero or 60℃ above zero, the humid coastal areas, the arid deserts etc.
