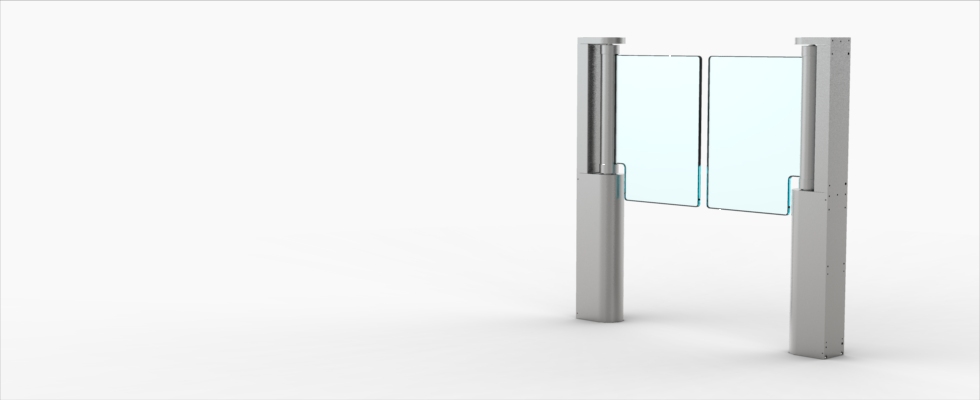

ES T-7

Electromechanical Unit for Swing Gates



It is the core unit for pedestrian access control equipment used for passage management in publics. It is a high-class mechatronics device with electromagnetic clutch, DC power-assisted drive and anti-panic design.

barrier,swing gates,access control, security products
Technical Specifications




Physical dimension(mm) and Weight(kg)

  • Length: 125mm (4.92 inches)
  • Width: 87mm (3.43 inches)
  • Height: 790mm (31.10 inches)
  • Weight: 10kg (22.05 pounds)



Main materials

  • Frame work: 2.0mm SUS304 stailess steel

  • Electromechanical Unit Base: 45 steel with Zinc plated

  • Leaf: PMMA/flame retardant PU(optional)/toughened glass(optional)



Electromechanical unit performances

  • Transmission mode: servo-position drive
  • Safe mode: free passage in case of power failure
  • Power-assist drive:DC brushless motor
  • Gate opening mode: side by side swing for 90°
  • Opening/closing time: 0.4~0.8s(adjustable)
  • Passage width: 600~980mm(900mm above for special needs)
  • Gate travel angle: 90°or 180°
  • Gate dimension: 278~480mm (customizable); Standard: 278mm
  • Noise: standby status:≦40db; working status:≦52db
  • Passthrough rate: 40 passages /minute in normally closed mode; 60 passages/minute in normally open mode
  • Driver life:>5 million times; MCBF>2 million times;  MTTR≤10 minutes



Features

  • Mechanical device, rational gates position, current detection and entrance sensor regulate and protect user from being trapped.
  • The system is equipped with stepless position device and the operation process is controlled by sensors without mechanical impact.
  • The default single passage is composed of two single-units; Multi passages are composed of two single-units and multi double-units.
  • Gate operation mode: normally closed or normally open(optional).
  • Swing angle: 90 for one direction passing / ±90°for bi-direction passing
  • Speed: 5 levels (adjustable).
  • Starting torque and brake torque of motor are adjustable.





  • Motor combined rotary encoder provides steady operation; gates status is checked when working.
  • Anti compact: gates cannot be opened in closed status by external force thanks to its special mechanical structure.
  • Contact force between gates and human body is controlled and checked by Hall sensor and electro-optic rotary encoder. If the force is more than 2 kgs (default and adjustable), gates will open automatically and it stops working until user leaves.
  • Protection functions: anticollision, antistall, antideadlock, over voltage, over current and power surge.
  • Preventing and warning the illegal operations.
  • Auto gates opening in case of power failure or other extraordinary situations.
  • Standard external electric interface with photoelectric isolation enhance incorporate all kinds of control equipments thus extremely convenient for system integration.
  • Special ITE is convenient for test. The default factory parameters can be changed.
  • Remote control and setup.



Electrical and operating requirements

  • Control unit:  electromechanical unit controller and passage controller
  • Operating voltage:DC 24V
  • Starting power: 95W for single unit; 150W for a passage
  • Averager power: 30W for single unit; 60W for a passage
  • Max power: 40W for single unit; 80W for a passage
  • Operating temperature: -20 to 70°C(-4 to 158°F)
  • Storage temperature: -40 to 80°C(-40 to 176°F)
  • Relative humidity: 0  to 95%RH



Communication

  • Standard RS232 port
  • Digital I/O
  • Industrial RS485/CAN BUS (optional)





Operation interface (user’s choice for expansion )

  • ITE, please refer to its manual



Installation

  • Power line grounded well
  • Please refer to ES T-7 installation drawing
