ES3100

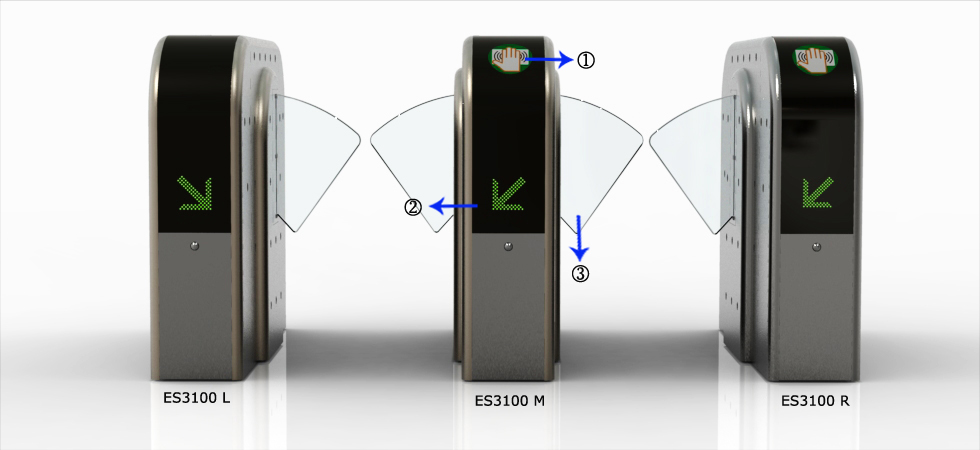

①Operation area; ②Leaf; ③Indicator LED; L: Left gate; M: Middle gate; R: Right gate





optical turnstiles,factory, access control gates

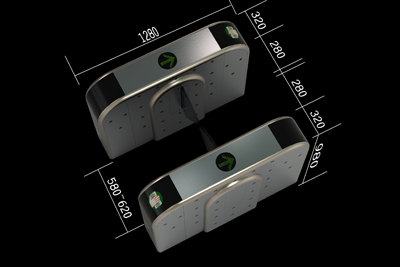

Physical dimension(mm) and Weight(kg)

  • Length: 1280mm (50.394 inches)

  • Width: 320mm (10.499 inches)

  • Height: 980mm (38.583 inches)

  • Weight: 100kg (220.462 pounds)

  • Packaging: length(1400mm),width(400mm),height(1200mm)



Main materials

  • Framework: 2.0mm SUS304 stainless steel

  • Housing: 1.5mm thick SUS304 Grade Brush stainless steel

  • Electromechanical unit: 45# steel with Zinc plated

  • Leaves: PMMA



Electromechanical unit performances

  • Transmission mode: servo-position drive

  • Safe mode: free passage in case of power failure

  • Power-assist drive:DC brushless motor

  • Gate opening mode: side by side combination

  • Opening/closing time: 0.4~0.8s(adjustable)

  • Passage width: 580--620mm

  • Noise: ≦52db; gate opening and closing: ≦55db

  • Passthrough rate: 35 passages /minute in normally closed mode; 60 passages/minute in normally open mode

  • Driver life: MCBF(average number of cycles between breakdowns)> 5 million times



Features

  • Multigroup electric-eye sensors in real-time monitoring the entrance status; precise logical identification; accessible authorized passage

  • Mechanical device, rational gates position, current detection and entrance sensor regulate and protect user from being trapped







  • The system is equipped with stepless position device and the operation process is controlled by sensors without mechanical impact

  • Digital-controlled (CNC) processing technology, fine surface treatment and corrosion resistance

    •

  • Easy passage, even with bags or luggage

  • Anti-trailing: security level 3 (See Remarks)

  • Passthrough modes: one or both directions(optional); adjustable passthrough rate; optional operation modes

  • Orientation pictogram: passage direction indicator

  • Lightning protection and leakage protection

  • Protection functions: anticollision, antistall, over voltage, over current and powersurge

  • Preventing and warning the illegal operations

  • Standard external electric interface with photoelectric isolation enhance incorporate all kinds of control equipments thus extremely convenient for system integration

  • Remote control and setup



Electrical and operating requirements

  • Power supply:100V to 240V AC

  • Frequency range:single-phase 50Hz to 60Hz

  • Operating voltage:DC 24V

  • Current: 300mA in standby condition; 4A(maximum operating current)in working condition

  • Operating temperature: -20 to 70°C(-4 to 158°F)

  • Storage temperature: -40 to 80°C(-40 to 176°F)

  • Relative humidity: 5% to 95%RH



Communication

  • Standard RS232 port

  • Digital I/O

  • Industrial RS485/CAN BUS (optional)



Operation instructions(user’s choice)

Orientation pictogram

                                 Status LED                                            Indicator LED



Operation interface (user’s choice for expansion )

  • Available in the installation environment for card reader

  • Available in the installation environment for LED or LCD monitor

  • Available in the installation environment for other user control equipments



Installation

  • Single-phase power supply 3A 110V to 220V AC+ground(earth)

  • Connecting electrical wiring to the control equipments

  • Slab to be drilled on Structural Slab Level and dowelled on Finished Floor Level to secure in position

  • Please refer to ES3100 Installation Drawing






Remarks:
Security level 1: Provide basic anti-trailing system; relatively short equipment; basic level of single passage regulation in both directions;

Security level 2: Provide the best length and structure for anti-trailing identification system; basic level of single passage regulation in

both directions and identification to child and trolley;

Security level 3: This equipment is equipped with mechanical device and sensors to identify bi-direction passage and prevent trailing.                                                          DOWNLOAD

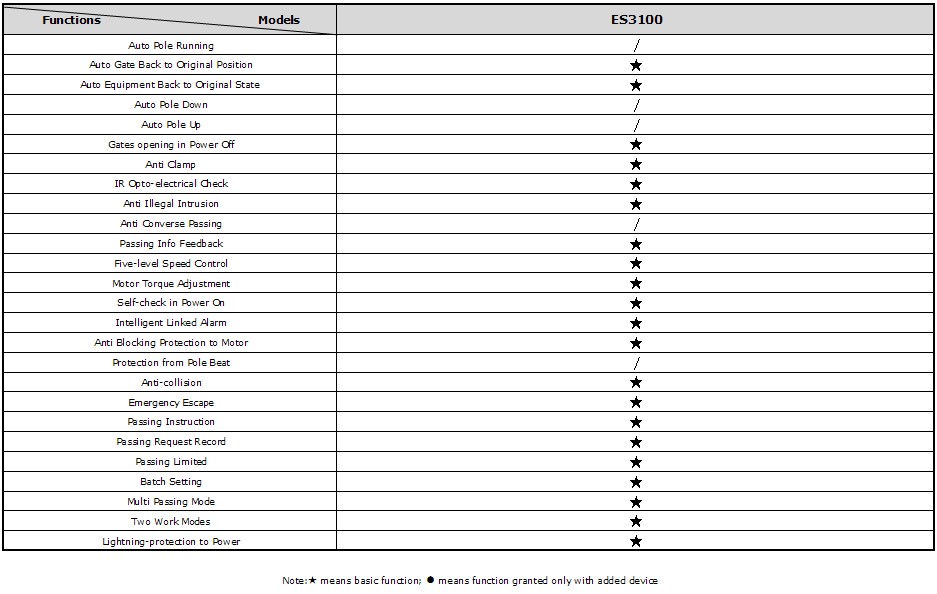

Function Comparison Table
Secure, practical and exquisitely
designed Tripod Turnstiles
tripod turnstiles
The latest Speed Gates: only 0.4 second
for gates opening & closing
speed gates
The latest Swing Gates: only 0.4 second
for gates opening & closing
swing gates

What is Speed Gates

  • Speed Gates is an access control equipment which is composed of housing, electromechanical unit, control system, IR sensor, control device, etc.
  • There are two leaves which can extend and retract rapidly in each passage. When equipment receives gate opening signal, the two leaves will extend and retract rapidly at the same time, then the passage is in barrier-free status.
  • Quick gates opening, safe use and easy management make speed gates the first choice for passage with heavy volume pedestrian.

How to select Speed Gates

  • From product itself, there are three important criterions:
  • A.Lifetime;
    B.Craftwork and materials;
    C.Type of electromechanical unit.
    There are two types of electromechanical unit: fire-fighting & non fire-fighting. The most important feature for the fire-fighting is that the passage will be in barrier-free status without external force in case of power off.

  • Product use: pedestrian volume must be considered.

  • Working environment: it is suited to indoor or outdoor use.

Why Essence

  • Essence early started to research and develop Speed Gates with independent intellectual property for electromechanical unit.
  • Essence's products are well designed with normal structure to provide humanized service.
  • The electromechanical unit with 3-level protection was tested in millions of times. 5 years successful application proves it has excellent performance.
  • Strict positioning and safety check provide safe passing.
  • DC24V power supply will not be harmful to users.
