ES3100

optical gates, speed gates,gates manufacturer

ES3100









The anti-panic function makes gates open in case of power failure to free passage; when power supply is resumed, gates will close automatically.









 speed gates, factory,access control,optical turnstiles

ES3100

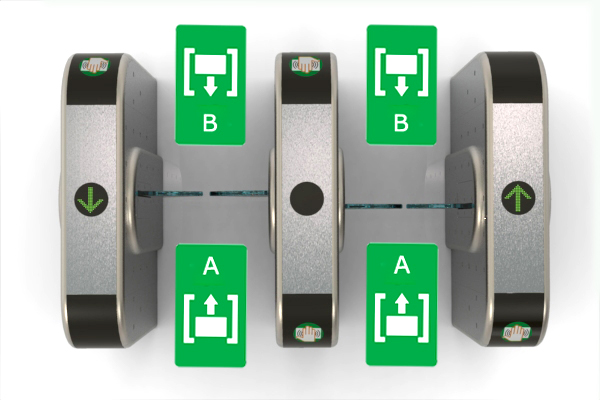

 Nine different control modes

   access control system, gates,optical gates,turnstiles
 AB Clear
 AB Controlled
 AB Locked
 A Clear B Controlled
 A Clear B Locked
 A Controlled B Clear
 A Locked B Clear
    A Locked B Controlled
    A Controlled B Locked


ES3100

Be available for I/O of access control,attendance devices, as well as port input control devices


Access control device>>>

 Attendance device>>>
   <<< Digital I/O>>>   turnstiles,optical turntyles,access control gates

<<< RS232 >>>

<<< RS485 >>>

<<< CAN >>>


 <<< Computer
 <<< Embedded device
 <<< Mobile device

 <<< Handheld device

It is so easy to control this equipment!

ES3100

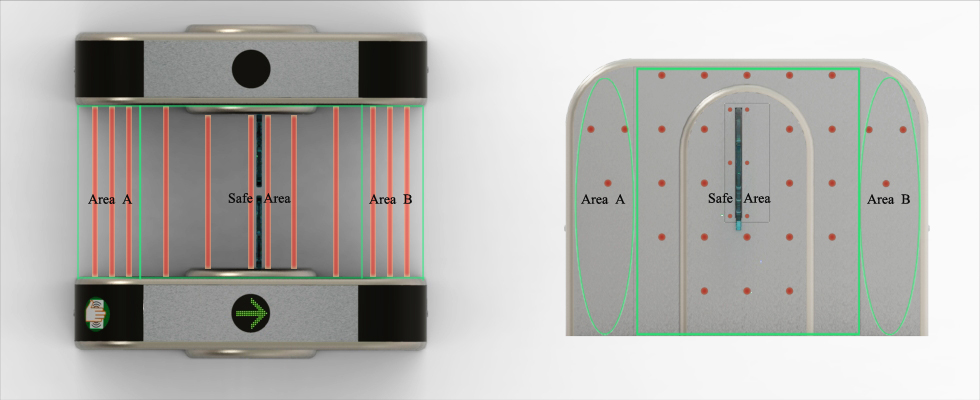

Distribution map for Infrared areas
access control gates,optical gates,turnstiles,turnstyles factory
10 to 32 pairs of infrared sensors are available for this equipment
Secure, practical and exquisitely
designed Tripod Turnstiles
tripod turnstiles

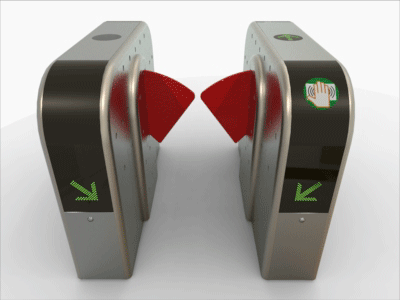

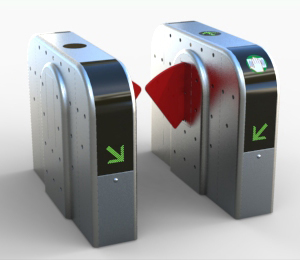

The latest Speed Gates: only 0.4 second
for gates opening & closing
speed gates
The latest Swing Gates: only 0.4 second
for gates opening & closing
swing gates

What is Speed Gates

  • Speed Gates is an access control equipment which is composed of housing, electromechanical unit, control system, IR sensor, control device, etc.
  • There are two leaves which can extend and retract rapidly in each passage. When equipment receives gate opening signal, the two leaves will extend and retract rapidly at the same time, then the passage is in barrier-free status.
  • Quick gates opening, safe use and easy management make speed gates the first choice for passage with heavy volume pedestrian.

How to select Speed Gates

  • From product itself, there are three important criterions:
  • A.Lifetime;
    B.Craftwork and materials;
    C.Type of electromechanical unit.
    There are two types of electromechanical unit: fire-fighting & non fire-fighting. The most important feature for the fire-fighting is that the passage will be in barrier-free status without external force in case of power off.

  • Product use: pedestrian volume must be considered.

  • Working environment: it is suited to indoor or outdoor use.

Why Essence

  • Essence early started to research and develop Speed Gates with independent intellectual property for electromechanical unit.
  • Essence's products are well designed with normal structure to provide humanized service.
  • The electromechanical unit with 3-level protection was tested in millions of times. 5 years successful application proves it has excellent performance.
  • Strict positioning and safety check provide safe passing.
  • DC24V power supply will not be harmful to users.
ESSENCE > Applications
tripod turnstiles, tripod turnstyles, speed gates,swing gates
Railway&Subway Station
Access control system which combines AFC system is the best choice for increasing passing speed, saving time and reducing staff’s work load.
access contron, turnstiles,turnstyles,turnstyles gates,half-height turnstiles
Park&Scenic Spot
Access control system combining with E-ticket system, not only increases tourist’s passing speed and provides security, but also reduces staff’s work load thus improving efficiency.
waist-height turnstiles,barrier,access control, swing gates
Stadium&Exhibition Hall
Access control system used in conference and exhibition centers, stadiums, museums, libraries etc, dramatically increases passing speed, saves audience and visitor’s time, and relieves heavy pedestrian flow.
security products,access control system,barrier gates,gates
Industrial Plant&Office Building
Access control system used in industrial plants, office buildings, combining access control and attendance management, provides automatic management for smart surveillance.
swing gates,speed gates,entrance control system,access control
Port&Quays
Through interlocking management for front and back gates, verifying each people who passes the Customs and avoiding tailing.
security and protection,half-height turnstiles,tripod turnstiles,turntyle
Bus Rapid Transit
Access control system combines with AFC system to finish ticket business, passing task etc thus increasing BRT overall trip speed and security. This high-quality and high-efficiency service is the symbol of humanization.
